Rechteckige Duschwanne BASIC BOARD FLAT

zum Einbauenzum AufstellenEdelstahl

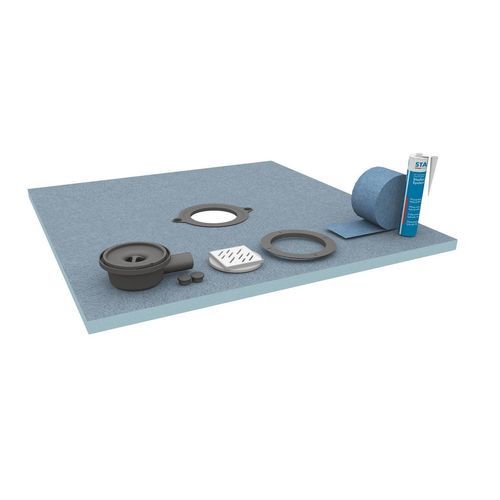

The Basic Board shower element "Flach" offers a simple and quick way to create floor-level shower areas in various designs. With a low installation height and a uniform slope of about 2–3% towards the floor drain, installation is effortless and without disruptive edges. It provides the immediate possibility to lay ceramic or other floor coverings, ensuring flexibility and adaptability. Custom-made special versions up to a size of 2500 x 1500 mm open up limitless possibilities for individual design concepts. For public buildings, an optional fire protection insert is available, providing additional safety. A variety of grate designs gives the element an attractive appearance, while height-adjustable variants offer additional design freedom.Scope of delivery:1x tileable shower element Basic Board Flach1x flat floor drain horizontal or classic floor drain vertical, with bayonet ring1x grate holder incl. stainless steel grate "Hamburg"2x rubber stoppers for sealing the filling openings1x sealing set Easy-Seal – consisting of: 4 linear meters of system sealing tape, 1 system inner corner, 4 linear meters of edge insulation strip, 1 cartridge of system adhesiveSpecial features: guaranteed waterproof, suitable for all tile formats, wheelchair accessible from tile size 5 x 5 cm, 100% precise fit, low weight, high stability, energy-efficient thermal insulation, 100% waterproof, 5-year warranty, incl. 2-sided wall connection + edge insulation strip, secure standing due to integrated slope, low installation heightApplication examples: new construction, renovation, bathroom refurbishment, public tenders (e.g. clinics + nursing homes, kindergartens), hotels, wellness, spaTechnical characteristics / specifications:Low installation heightUniform slope of approx. 2–3% to the floor drainCustom-made up to 2500 x 1500 mmOptional fire protection insert for public buildingsVarious grate designs availableHeight-adjustable variantsWheelchair accessible from tile size 5 x 5 cm100% waterproof and precise fitLightweight and high stabilityEnergy-efficient thermal insulation5-year warrantyIncludes 2-sided wall connection and edge insulation strip
